Photo Detector ICs
Next generation PDIC for Optoelectronic Switch
■Photo Diode IC for Optoelectronic switch (built-in logic)
Overview
- Photoelectronic switch IC with all built-in functions.
- An electromagnetic shield is not required due to the built-in unique electromagnetic shield on the light receiving surface.
- Two split light receiving surface (0.7mm×0.7mm×2)
Emission pulse width is 0.5μsec, power consumption can be halved.

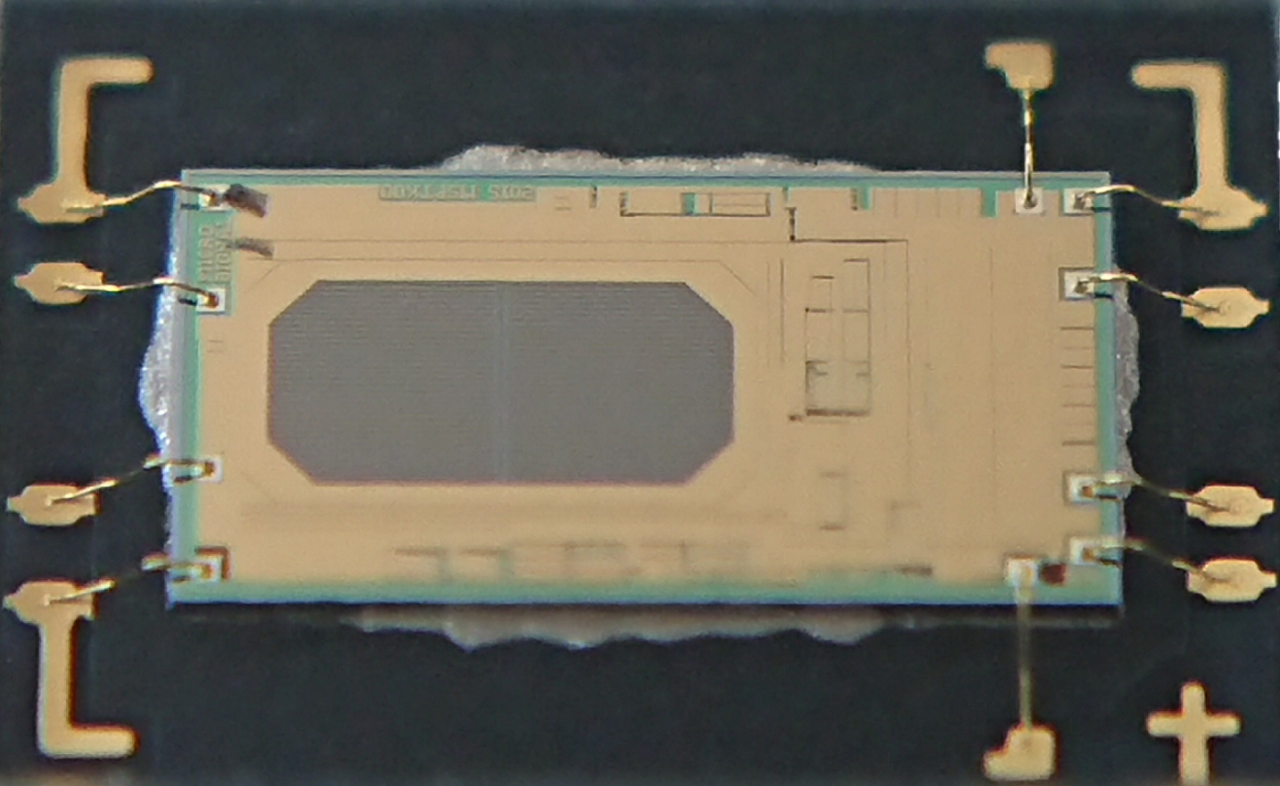

Photo Diode IC
■ Applications
・Photoelectric switch light receiving sensor
(built-in LED driver)
■General-purpose analog photodetector IC
Overview
- Low capacitance and low noise are realized by our unique light receiving element.
- Uses our unique shield structure that is not affected by external electromagnetic noise.
- Built-in coupling capacitor for DC cut removes disturbance light near DC.
■ Applications
・Light receiving part of various optical sensors
■ Features
・Built-in coupling capacitor removes disturbance light near DC
・Frequency 1MHz
・High linearity
・Low noise: Equivalent noise level -78dBm (15pW TYP)
・Resistant to external electromagnetic noise
・Light-receiving surface size (0.7mm×0.7mm)
Circuit Block Diagram

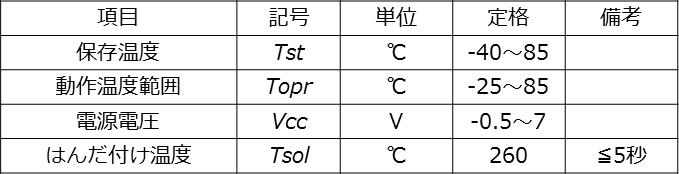

絶対最大定格（prelimiary）

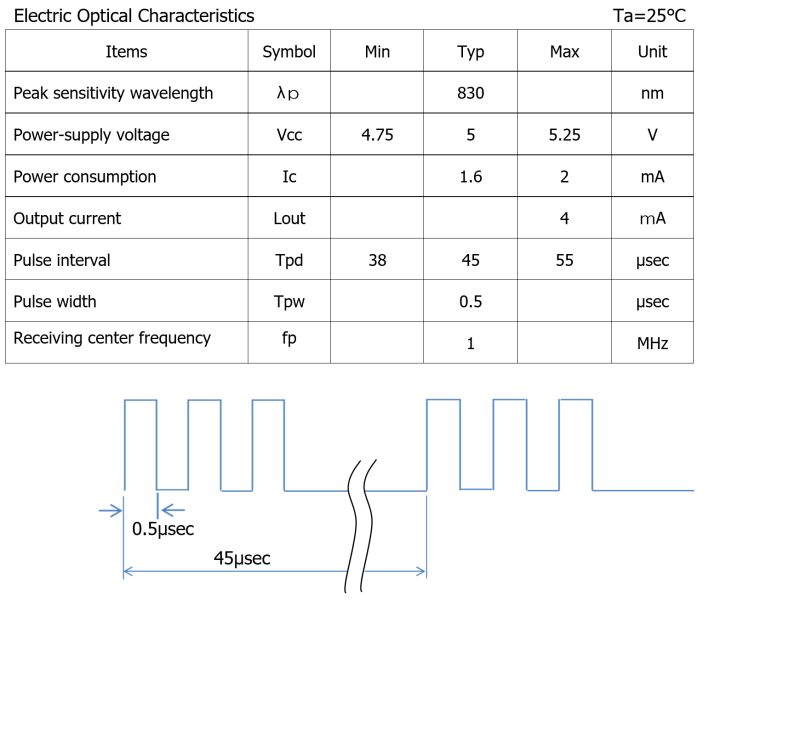

電気・光学的特性（prelimiary）

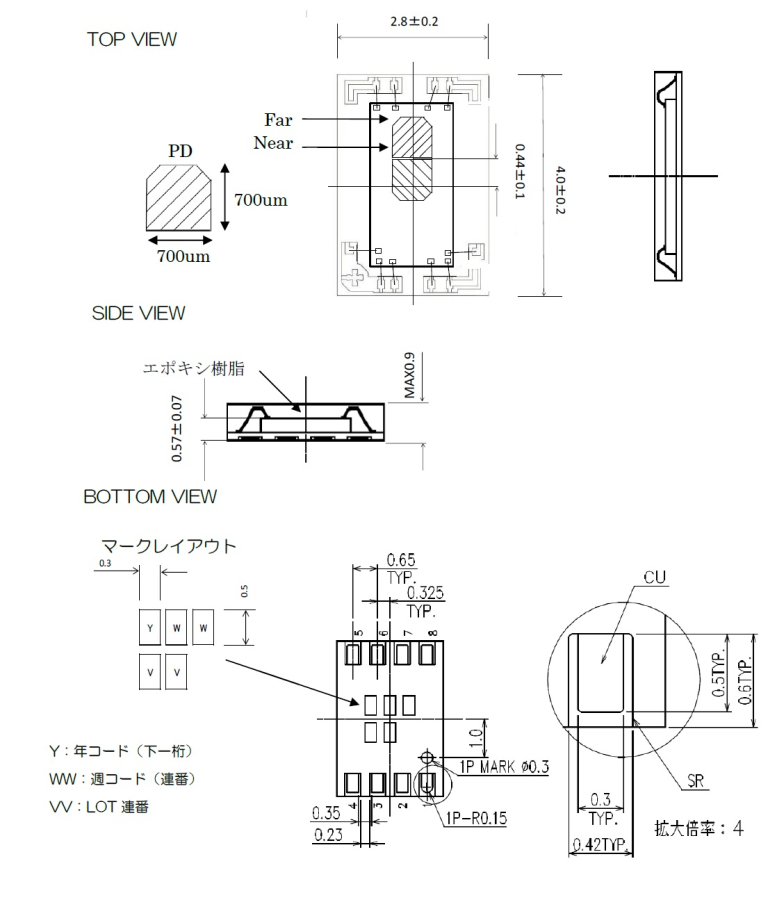

外形寸法（preliminary）
